Metal
Copper
The conductivity choice for heat transfer, power distribution and RF components.
01 · QUICK ANSWER
When should you choose Copper?
Use C110 for common electrical and thermal parts, C101 when higher purity is required, and chromium copper when strength and wear must improve without losing too much conductivity.
02 · SELECTION DATA
Typical properties at a glance
Screening values only. Final design data must follow the exact grade, condition, stock form and supplier certificate.
Density8.9–8.96 g/cm³
Strength range70–1000+ MPa yield
TemperatureAlloy dependent
MachinabilityModerate
03 · ENGINEERING NOTES
Specify what changes the result
A material name alone is not enough. Include grade, condition, finish and documentation on the drawing or purchase specification.
- C101
- C110
- C145 tellurium copper
- C172 beryllium copper
- C18150 chromium copper
- Busbars

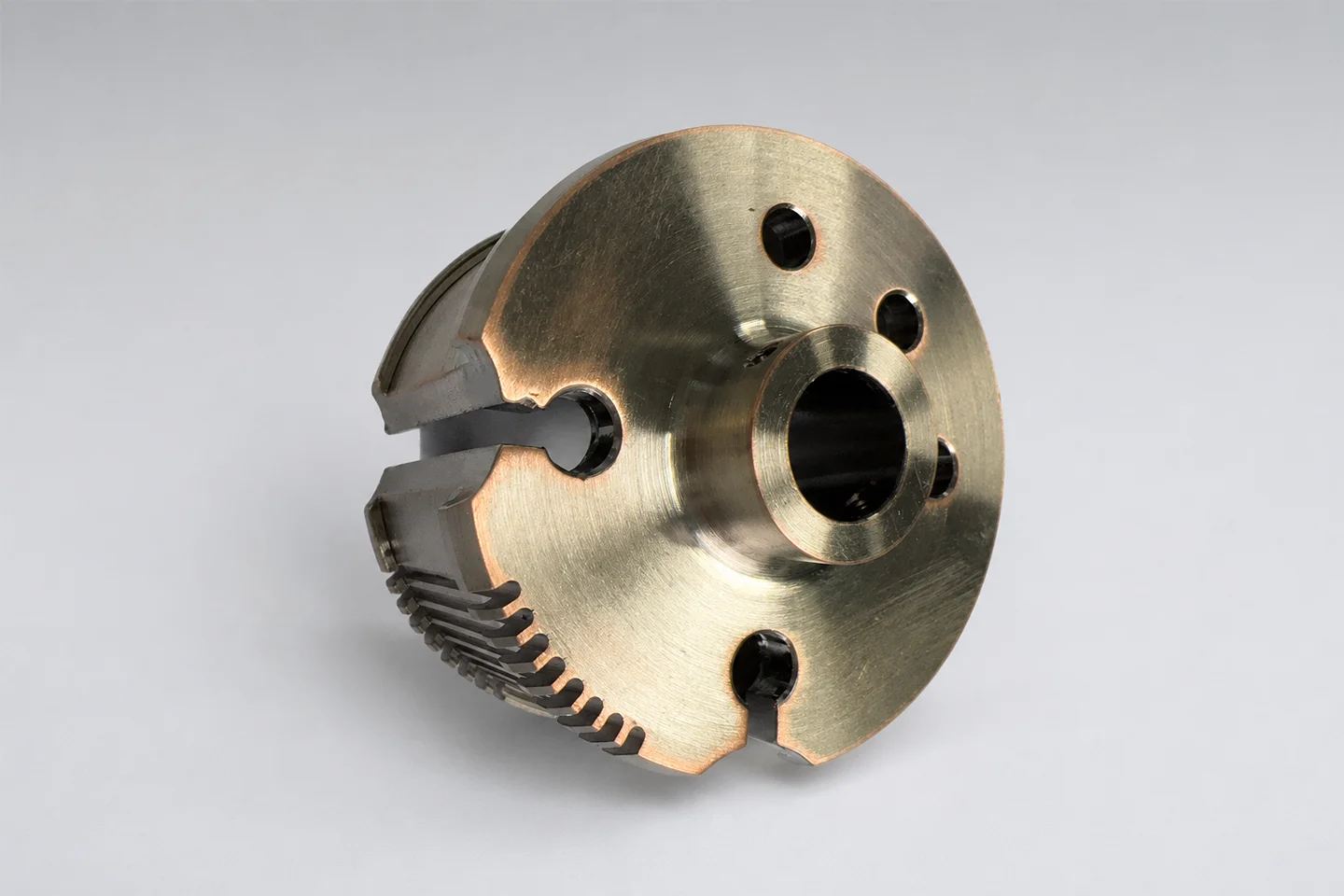

- Heat spreaders
- RF components
- Electrical contacts
- Pure grades can be gummy to machine
- Surface marks and oxidation are visible
- Beryllium copper requires controlled handling
- As machined
- Polish
- Tin plate
- Nickel plate
- Silver plate
04 · MANUFACTURING FIT
Available process routes
CNC machiningCommonly available
Sheet metalCommonly available
3D printingReview by grade and geometry
